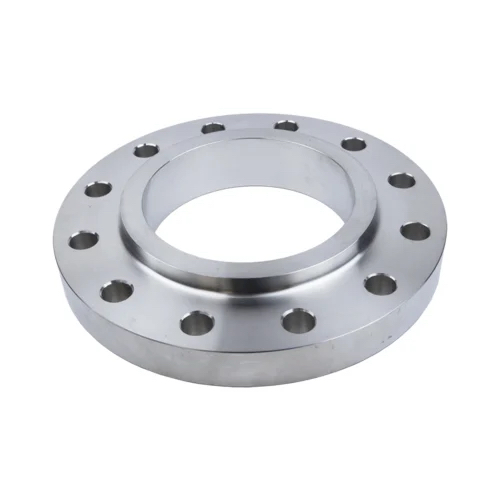

DN250 (10" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304

DN250 (10" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-250-RF-SOB-ASA300-304
Size (Inch)
10"
Outside Diameter (mm)
273.00mm
Weight
37.1 KG
https://www.processflow.co.uk/web/image/product.template/18098/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 37.10 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 444.5mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 387.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Product Code: SS-NB-FLA-250-RF-SOB-ASA300-304


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 10"
Outside Diameter (mm) 273.00mm
