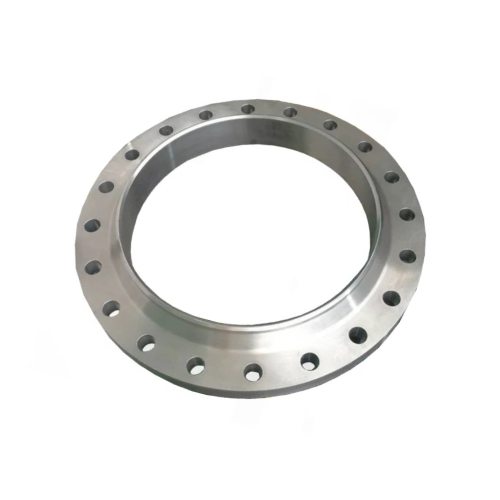

DN250 (10" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316

Name: DN250 (10" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
SKU: SS-NB-FLA-250-RF-WN-S40-300-316
Availability: InStock

Outside diameter (O): 444.5mm

Flange thickness (C): 47.7mm

Hub height (X): 320.5mm

Length through hub (A): 273.0mm

Bolt circle diameter (K): 336.6mm

Overall height (Y): 117.3mm

Raised face thickness (RF): 1.5mm

Bore (B): 323.8mm

Number of bolt holes: 16

Bolt hole diameter: 28.4mm

Approx. weight: 44.3kg

Availability: Call for prices
