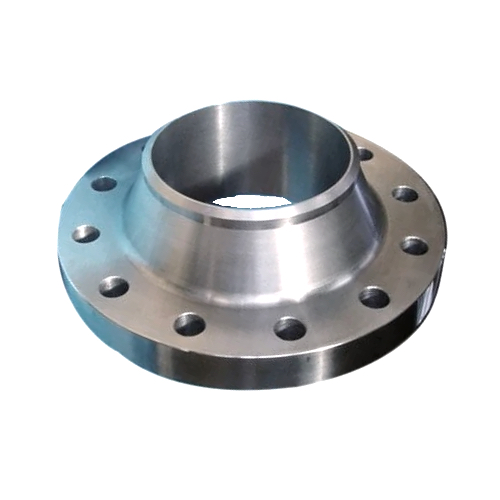

DN250 (10" NB) SCHEDULE 40S ASA150 WELD NECK FLANGE SS 304

DN250 (10" NB) SCHEDULE 40S ASA150 WELD NECK FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-250-RF-WN-S40-A150-304
Size (Inch)
10"
Outside Diameter (mm)
273.00mm
Weight
55.0 KG
https://www.processflow.co.uk/web/image/product.template/18260/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 55.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Hub length (X): 304 Stainless Steel.8mm
Neck height (A): 273.0mm
Pitch circle diameter (K): 361.9mm
Hub base diameter (Y): 101.6mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 10"
Outside Diameter (mm) 273.00mm
