  3. DN300 (12" NB) PN10 RF BLIND FLANGE SS 304
Website List 200 (PFC)

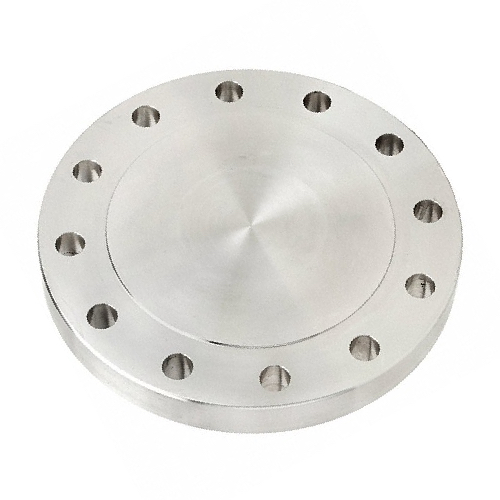

DN300 (12" NB) PN10 RF BLIND FLANGE SS 304

DN300 (12" NB) PN10 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-300-RF-BLA-P10-304
Size (Inch)
12"
Outside Diameter (mm)
323.90mm
Weight
13.6 KG
https://www.processflow.co.uk/web/image/product.template/18449/image_1920?unique=92bc388

£ 504.03 504.03 GBP £ 504.03 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 13.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 445mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 400mm
Flange thickness (C4): 26mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 12"
Outside Diameter (mm) 323.90mm
