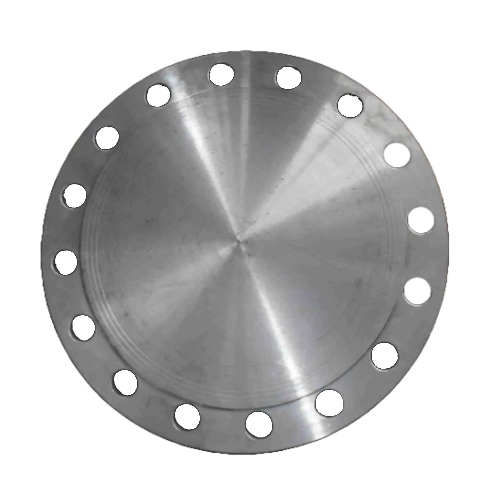

DN300 (12" NB) PN25 RF BLIND FLANGE SS 316

DN300 (12" NB) PN25 RF BLIND FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-300-RF-BLA-P25-316
Size (Inch)
12"
Outside Diameter (mm)
323.90mm
Weight
26.6 KG
https://www.processflow.co.uk/web/image/product.template/18520/image_1920?unique=92bc388

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 26.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 12"
Outside Diameter (mm) 323.90mm
