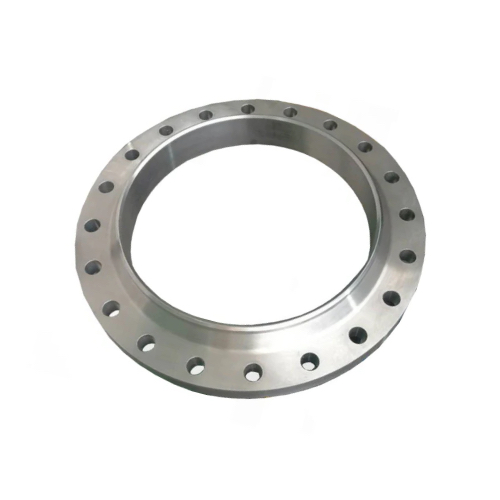

DN300 (12" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316

Name: DN300 (12" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
SKU: SS-NB-FLA-300-RF-WN-S10-300-316
Availability: InStock

Outside diameter (O): 520.7mm

Flange thickness (C): 50.8mm

Hub height (X): 374.6mm

Length through hub (A): 323.8mm

Bolt circle diameter (K): 406.4mm

Overall height (Y): 130.0mm

Raised face thickness (RF): 1.5mm

Bore (B): 381.0mm

Number of bolt holes: 16

Bolt hole diameter: 31.7mm

Approx. weight: 64.0kg
