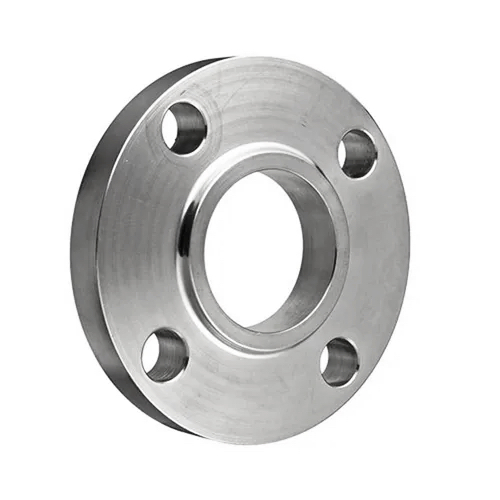

DN32 (1.1/4" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304

DN32 (1.1/4" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-32-RF-SOB-ASA300-304
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
1.8 KG
https://www.processflow.co.uk/web/image/product.template/18062/image_1920?unique=92bc388

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 1.80 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 133.3mm (O)
Flange thickness: 19.0mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
