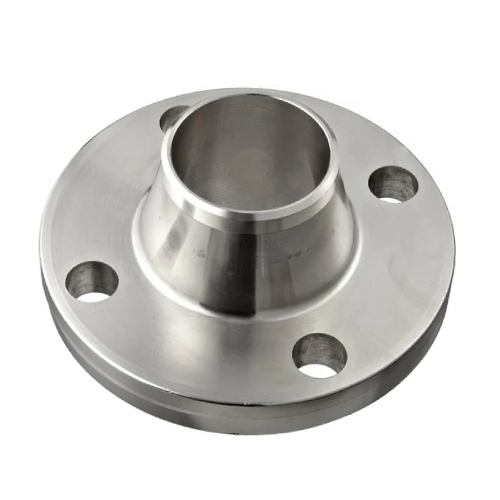

DN32 (1"1/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304

Name: DN32 (1"1/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
SKU: SS-NB-FLA-32-RF-WN-S40-300-304
Availability: InStock

Outside diameter (O): 133.3mm

Flange thickness (C): 19.0mm

Hub height (X): 63.5mm

Length through hub (A): 42.1mm

Bolt circle diameter (K): 98.5mm

Overall height (Y): 65.0mm

Raised face thickness (RF): 1.5mm

Bore (B): 63.5mm

Number of bolt holes: 4

Bolt hole diameter: 19.0mm

Approx. weight: 2.6kg

Availability: Call for prices

Call for prices

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
