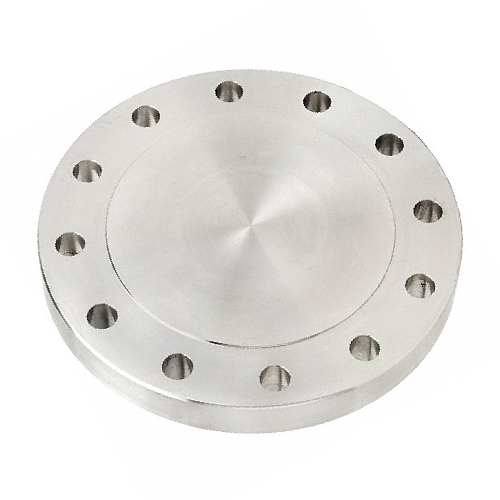

DN350 (14" NB) ASA150 RF BLIND FLANGE SS 304

DN350 (14" NB) ASA150 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-350-RF-BLA-150-304
Size (Inch)
14"
Outside Diameter (mm)
355.60mm
Weight
59.0 KG
https://www.processflow.co.uk/web/image/product.template/18576/image_1920?unique=2fe353f

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 59.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 14"
Outside Diameter (mm) 355.60mm
