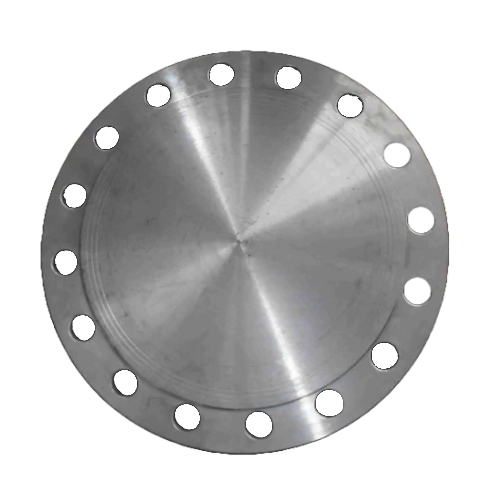

DN350 (14" NB) PN16 RF BLIND FLANGE SS 304

DN350 (14" NB) PN16 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-350-RF-BLA-P16-304
Size (Inch)
14"
Outside Diameter (mm)
355.60mm
Weight
28.2 KG
https://www.processflow.co.uk/web/image/product.template/18455/image_1920?unique=9f8b7da

£ 790.98 790.98 GBP £ 790.98 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 28.20 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 520mm
Drilling (No. x Bolt Hole x L): 16 x M24 x 26mm
Pitch circle diameter (K): 470mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 14"
Outside Diameter (mm) 355.60mm
