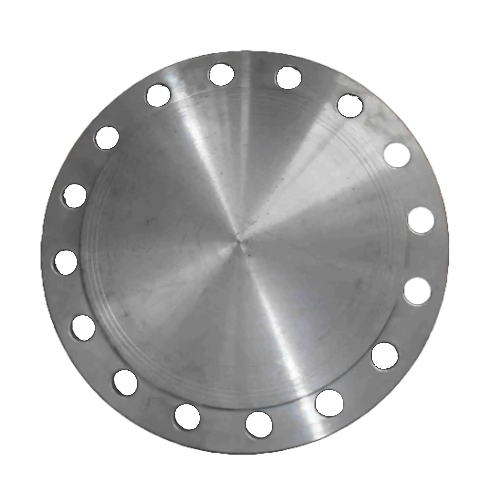

DN350 (14" NB) PN25 RF BLIND FLANGE SS 316

DN350 (14" NB) PN25 RF BLIND FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-350-RF-BLA-P25-316
Size (Inch)
14"
Outside Diameter (mm)
355.60mm
Weight
41.8 KG
https://www.processflow.co.uk/web/image/product.template/18525/image_1920?unique=9f8b7da

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 41.80 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 555mm
Drilling (No. x Bolt Hole x L): 16 x M30 x 33mm
Pitch circle diameter (K): 490mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Product Code: SS-NB-FLA-350-RF-BLA-P25-316
