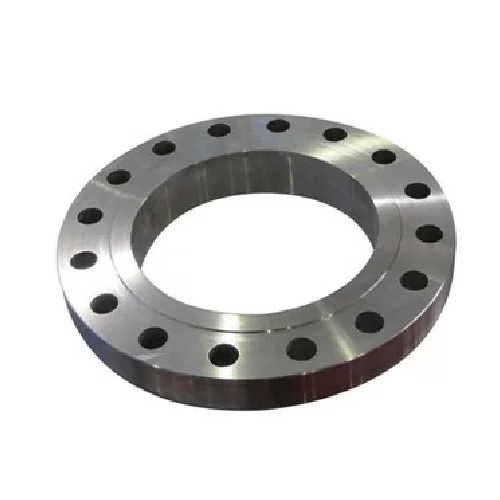

DN350 PN25 RF SLIP ON PLATE FLANGE SS 316
Technical Specification
Product Code
SS-NB-FLA-350-RF-SO-P25-316
Outside Diameter (mm)
355.60mm
Weight
41.8 KG
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 555mm (D)
PCD: 490mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
