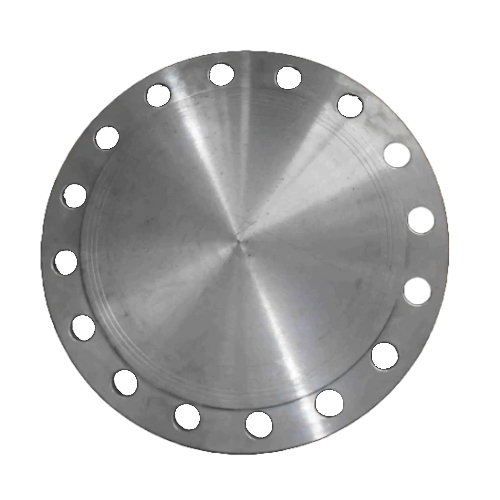

DN400 (16" NB) PN25 RF BLIND FLANGE SS 304

DN400 (16" NB) PN25 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-400-RF-BLA-P25-304
Size (Inch)
16"
Outside Diameter (mm)
406.40mm
Weight
57.6 KG
https://www.processflow.co.uk/web/image/product.template/18461/image_1920?unique=7f6b2af

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 57.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 620mm
Drilling (No. x Bolt Hole x L): 16 x M33 x 36mm
Pitch circle diameter (K): 550mm
Flange thickness (C1): 48mm
Raised face diameter (D1): 465mm
Raised face height (F1): 4mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 16"
Outside Diameter (mm) 406.40mm
