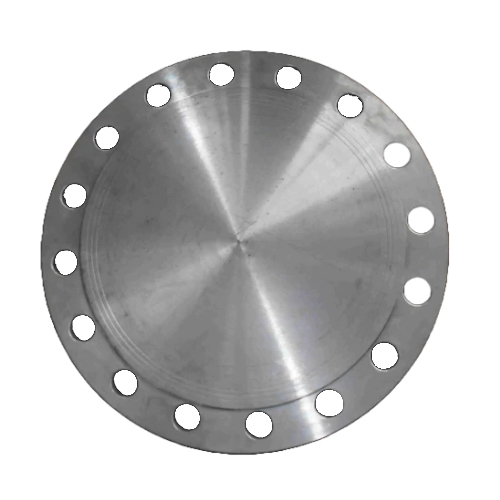

DN400 (16" NB) PN6 RF BLIND FLANGE SS 304

DN400 (16" NB) PN6 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-400-RF-BLA-P6-304
Size (Inch)
16"
Outside Diameter (mm)
406.40mm
Weight
38.5 KG
https://www.processflow.co.uk/web/image/product.template/18462/image_1920?unique=9f8b7da

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 38.50 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.


Flange overall diameter: 540mm (D)
PCD: 495mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 28mm (C4)
Diameter of Raised Face (RF): 465mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Product Code: SS-NB-FLA-400-RF-BLA-P6-304


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 16"
Outside Diameter (mm) 406.40mm
