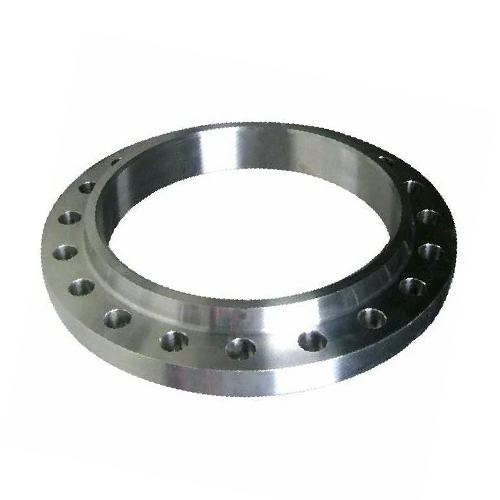

DN400 (16" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

DN400 (16" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-400-RF-SOB-ASA600-316
Size (Inch)
16"
Outside Diameter (mm)
406.40mm
Weight
142.0 KG
https://www.processflow.co.uk/web/image/product.template/18187/image_1920?unique=7f6b2af

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 142.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 685.8mm (O)
Flange thickness: 76.2mm (C)
Flange hub height: 106.4mm (Y)
Pitch Circle Diameter (PCD): 603.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 20 off 41.1mm diameter
Bore Diameter: 410.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 16"
Outside Diameter (mm) 406.40mm
