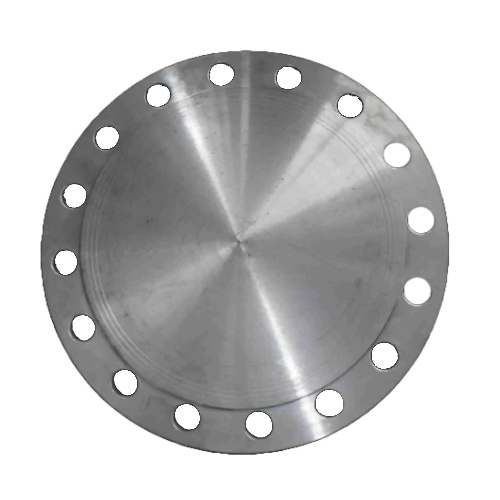

DN450 (18" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 595mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 30mm (C4)
Diameter of Raised Face (RF): 520mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 18" |
| Outside Diameter (mm) | 457.00mm |
