DN450 (18" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316

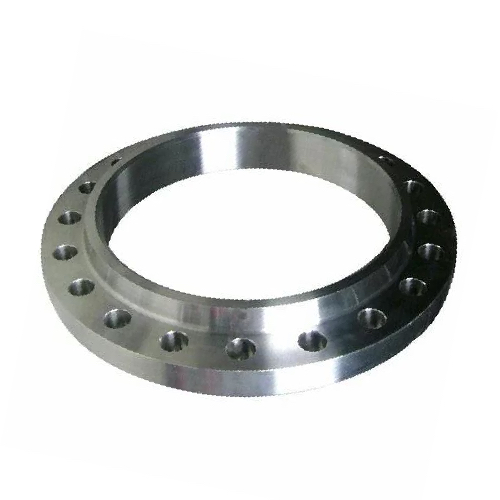

DN450 (18" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-450-RF-SOB-ASA300-316
Size (Inch)
18"
Outside Diameter (mm)
457.00mm
Weight
112.0 KG
https://www.processflow.co.uk/web/image/product.template/18190/image_1920?unique=7f6b2af

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 112.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 711.2mm (O)
Flange thickness: 60.4mm (C)
Flange hub height: 88.9mm (Y)
Pitch Circle Diameter (PCD): 628.6mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 35.0mm diameter
Bore Diameter: 461.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 18"
Outside Diameter (mm) 457.00mm
