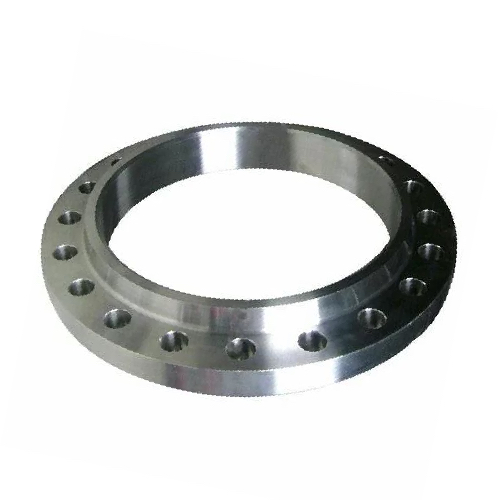

DN450 (18" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

DN450 (18" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-450-RF-SOB-ASA600-316
Size (Inch)
18"
Outside Diameter (mm)
457.00mm
Weight
175.0 KG
https://www.processflow.co.uk/web/image/product.template/18191/image_1920?unique=9f8b7da

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 175.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 742.9mm (O)
Flange thickness: 82.5mm (C)
Flange hub height: 117.3mm (Y)
Pitch Circle Diameter (PCD): 654.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 44.4mm diameter
Bore Diameter: 461.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Product Code: SS-NB-FLA-450-RF-SOB-ASA600-316


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 18"
Outside Diameter (mm) 457.00mm
