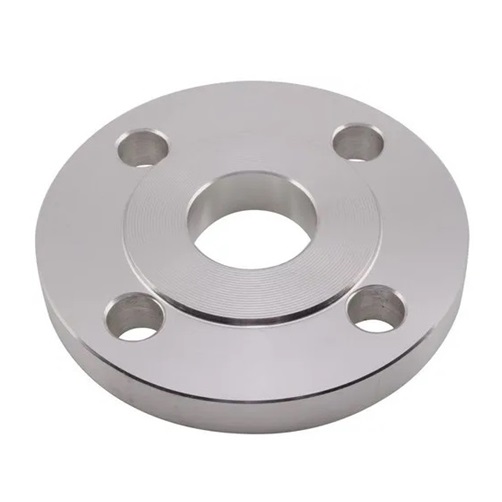

DN50 (2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Technical Specification
Product Code
SS-NB-FLA-50-RF-SO-P6-304
Size (Inch)
2"
Outside Diameter (mm)
60.30mm
Weight
1.48 KG
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
