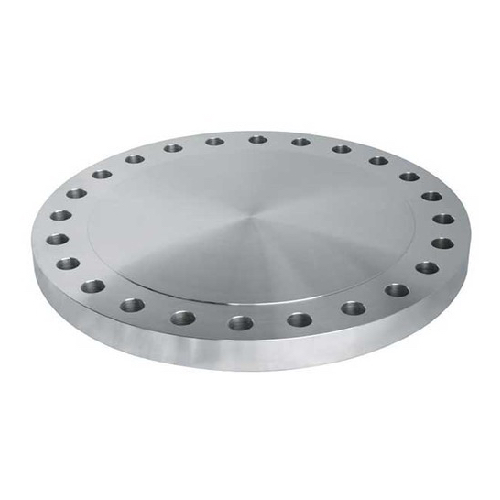

DN500 (20" NB) ASA150 RF BLIND FLANGE SS 316

DN500 (20" NB) ASA150 RF BLIND FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-500-RF-BLA-150-316
Size (Inch)
20"
Outside Diameter (mm)
508.00mm
Weight
124.0 KG
https://www.processflow.co.uk/web/image/product.template/18620/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 124.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced
Product Code: SS-NB-FLA-500-RF-BLA-150-316


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 20"
Outside Diameter (mm) 508.00mm
