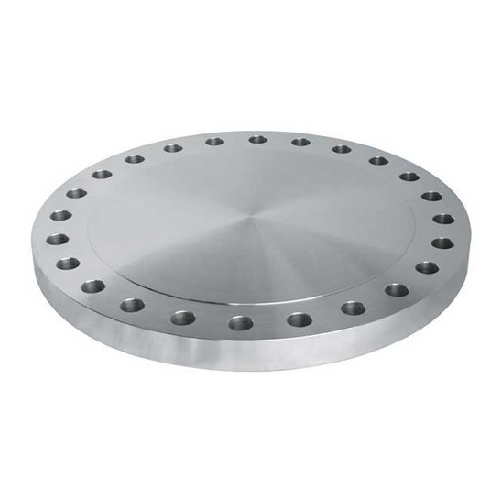

DN500 (20" NB) PN10 RF BLIND FLANGE SS 304

DN500 (20" NB) PN10 RF BLIND FLANGE SS 304


Flange OD (D): 670mm
Drilling (No. x Bolt Holes x L): 20 x M24 x 26mm
Pitch circle diameter (K): 620mm
Flange thickness (C4): 38mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Material Stainless Steel
Grade 304
Outside Diameter (mm) 508.00mm
Nominal Size DN500
Pressure Rating PN10
Flange Face Raised face (RF)
