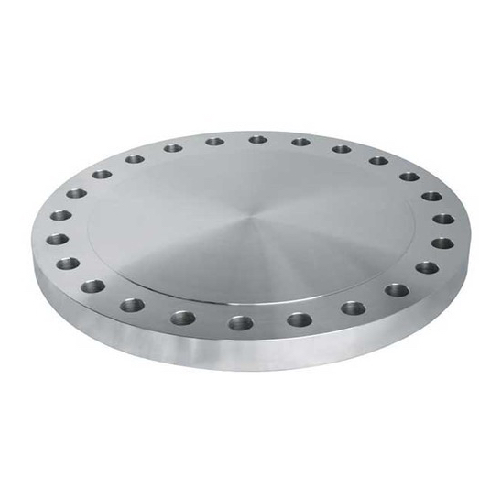

DN500 (20" NB) PN25 RF BLIND FLANGE SS 304

DN500 (20" NB) PN25 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-500-RF-BLA-P25-304
Size (Inch)
20"
Outside Diameter (mm)
508.00mm
Weight
87.0 KG
https://www.processflow.co.uk/web/image/product.template/18471/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 87.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 730mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 660mm
Flange thickness (C1): 58mm
Raised face diameter (D1): 570mm
Raised face height (F1): 4mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Product Code: SS-NB-FLA-500-RF-BLA-P25-304


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 20"
Outside Diameter (mm) 508.00mm
