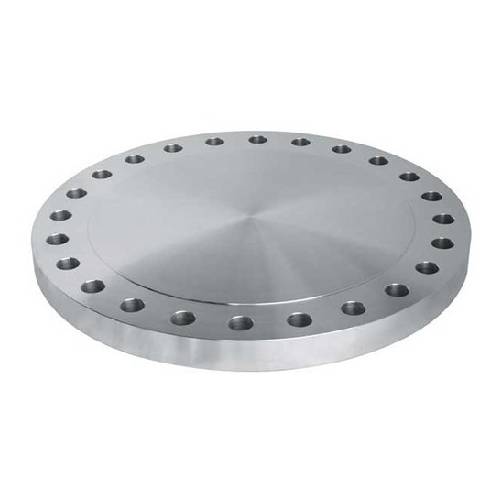

DN500 PN40 RF BLIND FLANGE SS 316

DN500 PN40 RF BLIND FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-500-RF-BLA-P40-316
Outside Diameter (mm)
508.00mm
Weight
188.0 KG
https://www.processflow.co.uk/web/image/product.template/18542/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 188.00 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 755mm
Drilling (No. x Bolt Holes x L): 20 x M45 x 42mm
Pitch circle diameter (K): 670mm
Flange thickness (C4): 57mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
