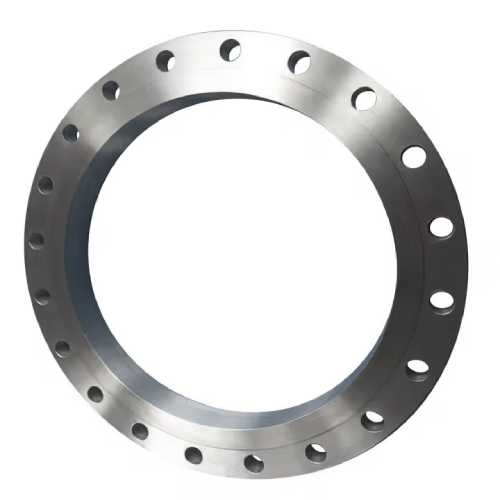

DN500 (20" NB) PN6 RF SLIP ON PLATE FLANGE SS 316

DN500 (20" NB) PN6 RF SLIP ON PLATE FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-500-RF-SO-P6-316
Size (Inch)
20"
Outside Diameter (mm)
508.00mm
Weight
29.14 KG
https://www.processflow.co.uk/web/image/product.template/18023/image_1920?unique=292fe87

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 29.14 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 645mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 20"
Outside Diameter (mm) 508.00mm
