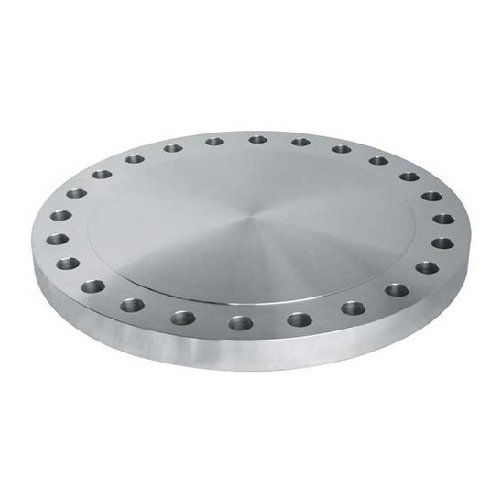

DN600 (24" NB) PN6 RF BLIND FLANGE SS 304

DN600 (24" NB) PN6 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-600-RF-BLA-P6-304
Size (Inch)
24"
Outside Diameter (mm)
609.60mm
Weight
103.0 KG
https://www.processflow.co.uk/web/image/product.template/18477/image_1920?unique=292fe87

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 103.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.


Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Raised Face (RF): 675mm (D1)
Height of Raised Face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 24"
Outside Diameter (mm) 609.60mm
