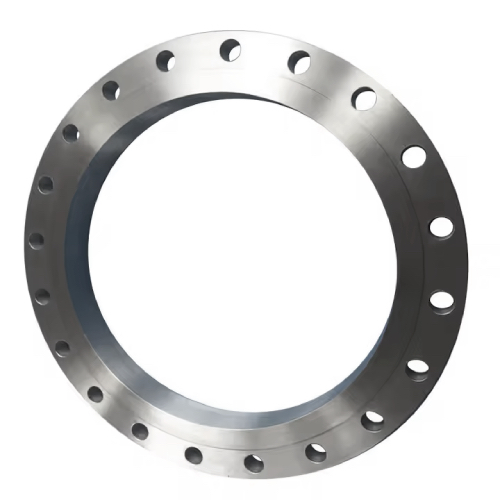

DN600 PN25 RF SLIP ON PLATE FLANGE SS 304
Technical Specification
Product Code
SS-NB-FLA-600-RF-SO-P25-304
Outside Diameter (mm)
609.60mm
Weight
127.0 KG
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 845mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 39mm diameter (L)
Flange Thickness: 68mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
