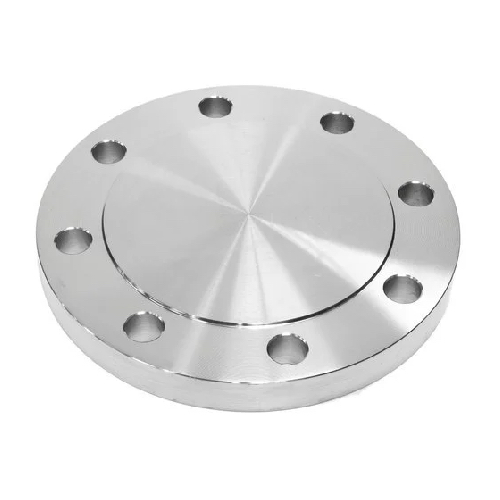

DN65 (2.1/2" NB) PN6 RF BLIND FLANGE SS 316

DN65 (2.1/2" NB) PN6 RF BLIND FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-65-RF-BLA-P6-316
Size (Inch)
2 1/2"
Outside Diameter (mm)
73.00mm
Weight
2.14 KG
https://www.processflow.co.uk/web/image/product.template/18494/image_1920?unique=292fe87

£ 47.88 47.88 GBP £ 47.88 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 2.14 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.


Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 110mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 2 1/2"
Outside Diameter (mm) 73.00mm
