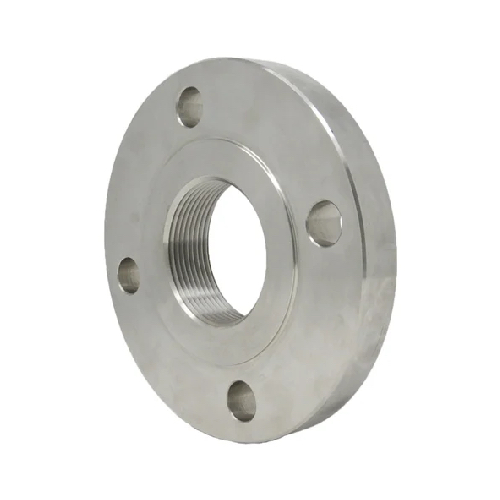

DN65 (2.1/2" NB) PN16 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 185mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 145mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2 1/2"
Bolt Holes: 4 OR 8 off M16 bolts
Material: Stainless Steel
Grade: 316
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 2 1/2" |
| Outside Diameter (mm) | 73.00mm |
