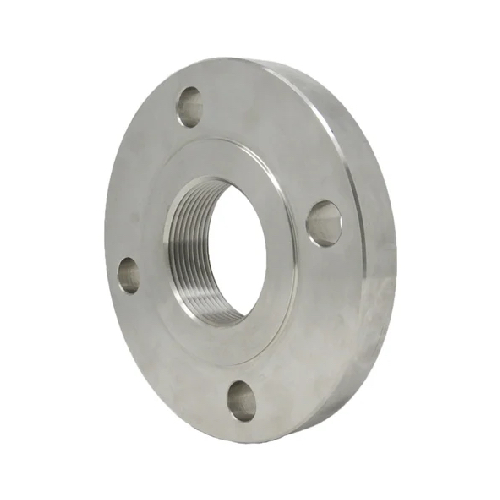

DN65 (2 1/2" NB) PN6 RF BSPP THREADED FLANGE SS 316

DN65 (2 1/2" NB) PN6 RF BSPP THREADED FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-65-RF-SCR-PN6-SS-316
Size (Inch)
1/2"
Outside Diameter (mm)
73.00mm
Weight
1.83 KG
https://www.processflow.co.uk/web/image/product.template/18239/image_1920?unique=292fe87

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 1.83 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 160mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 130mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2 1/2"
Bolt Holes: 4 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6
