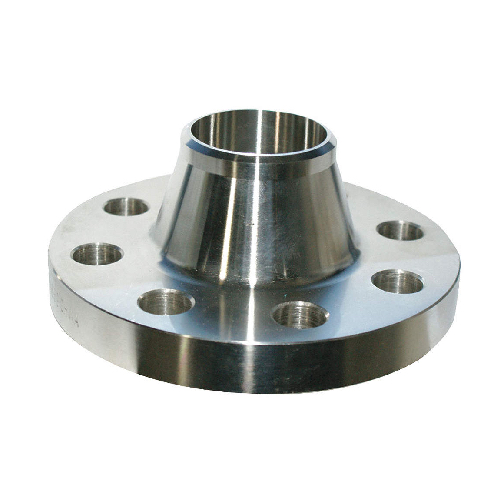

DN65 (2"1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

DN65 (2"1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-65-RF-WN-S10-300-304
Size (Inch)
2"
Outside Diameter (mm)
73.00mm
Weight
5.4 KG
https://www.processflow.co.uk/web/image/product.template/18360/image_1920?unique=1ec7b52

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 5.40 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg
Product Code: SS-NB-FLA-65-RF-WN-S10-300-304


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 2"
Outside Diameter (mm) 73.00mm
