  3. DN80 (3" NB) PN10 / PN16 RF BLIND FLANGE SS 304
Website List 200 (PFC)

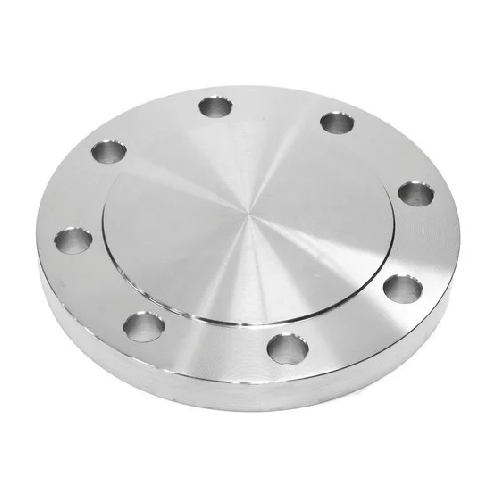

DN80 (3" NB) PN10 / PN16 RF BLIND FLANGE SS 304

DN80 (3" NB) PN10 / PN16 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-80-RF-BLA-P16-304
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Weight
3.6 KG
https://www.processflow.co.uk/web/image/product.template/18427/image_1920?unique=1ec7b52

£ 73.86 73.86 GBP £ 73.86 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 3.60 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 200mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 138mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Product Code: SS-NB-FLA-80-RF-BLA-P16-304


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 3"
Outside Diameter (mm) 88.90mm
