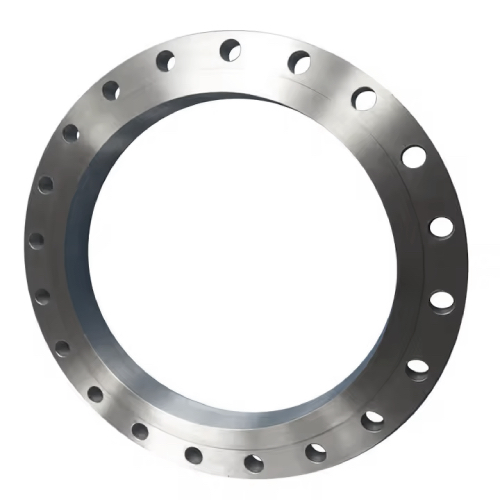

DN800 PN16 RF SLIP ON PLATE FLANGE SS 316
Technical Specification
Product Code
SS-NB-FLA-800-RF-SO-P16-316
Outside Diameter (mm)
812.80mm
Weight
143.02 KG
Flange inside diameter of: 818.0mm (B1)
Flange overall diameter: 1025mm (D)
PCD: 950mm (K)
Bolt Holes: 24 off 39mm diameter (L)
Flange Thickness: 74mm (C1)
Diameter of Raised Face (RF): 880mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
