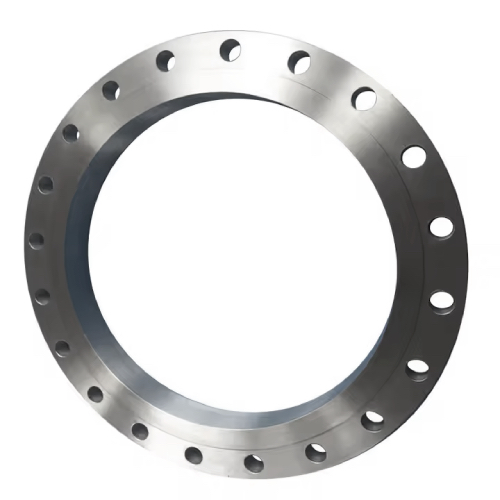

DN900 PN10 RF SLIP ON PLATE FLANGE SS 304
Technical Specification
Product Code
SS-NB-FLA-900-RF-SO-P10-304
Outside Diameter (mm)
914.40mm
Weight
124.76 KG
Flange inside diameter of: 922.0mm (B1)
Flange overall diameter: 1115mm (D)
PCD: 1050mm (K)
Bolt Holes: 24 off 33mm diameter (L)
Flange Thickness: 62mm (C1)
Diameter of Raised Face (RF): 980mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
