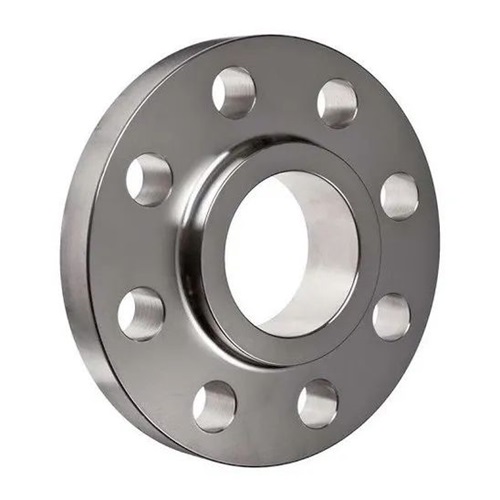

DN150 (6" NB) ASA150 RF SLIP ON PLATE FLANGE SS 304
Flanges
Technical Specification
Product Code
SS-NB-FLA-RF-SO-A150-150-FUL-304
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
7.5 KG
Suits an outside diameter (OD) of: 168.3mm
Material: Stainless
Grade: 304
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 8 off to suit 5/8"⌀ or M20 Bolts
PCD: 241.3mm
Flange Diameter: 279.4mm
Flange Thickness: 25.4mm
Certification Available: 3.1 BS EN 10204 Material Certification
