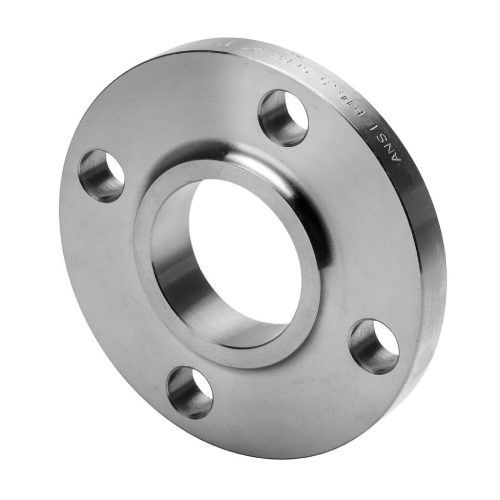

DN50 (2" NB) ASA150 RF SLIP ON BOSSED FLANGE SS 304

DN50 (2" NB) ASA150 RF SLIP ON BOSSED FLANGE SS 304

Suits an outside diameter (OD) of: 60.3mm
Material: Stainless
Grade: 304
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit 5/8" ⌀ or M16 Bolts
PCD: 120.65mm
Flange Diameter: 152.4mm
Flange Thickness: 19.0mm
Certification Available: 3.1 BS EN 10204 Material Certification

Flanges
  • Grade
  • Nominal Size
  • Pressure Rating
  • Flange Face
  • Outside Diameter (mm)
  • Material

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Grade 304
Nominal Size DN50
Pressure Rating Class 150
Flange Face Raised face (RF)
Outside Diameter (mm) 60.30mm
Material Stainless Steel
