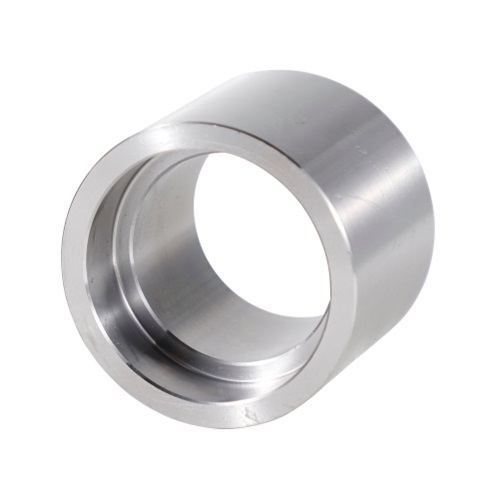

DN32 (1.1/4" NB) SOCKET WELD 3000# FULL COUPLING SS 316
Fittings
Technical Specification
Product Code
SS-NB-SW-3K-SOC-32-316
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
0.41 KG
Both sides: 1.1/4" Socket Weld
Suits an outside diameter (OD) of: 42.4mm
Material: Stainless 316
Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799
Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*
Alternative terminology:
Forged, Stainless, Socket Weld, Coupling, Socket, Straight, Equal.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 1.1/4" |
| Outside Diameter (mm) | 42.20mm |
