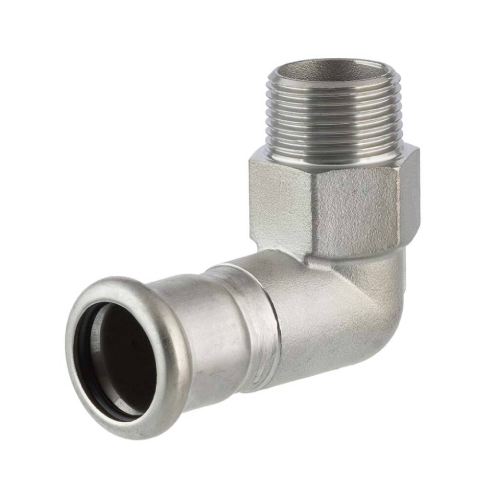

22MM X 3/4" PRESSFIT MALE BSP 90° ADAPTOR HNBR SEALS SS 316

22MM X 3/4" PRESSFIT MALE BSP 90° ADAPTOR HNBR SEALS SS 316

Technical Specification
Product Code
SS-PRS-FBA-22-20-NBR-316
Size (Inch)
3/4"
Outside Diameter (mm)
22.00mm
Weight
0.14 KG
https://www.processflow.co.uk/web/image/product.template/21428/image_1920?unique=cbb98dd

£ 26.64 26.64 GBP £ 26.64 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 0.14 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Size: 22MM x 3/4" BSP
Seal: HNBR
Thread: BSP Male
Profile: M Profile
Pressure Rating: 16 bar
Temperature Range: -30°C to 120°C
Material: 316L Stainless Steel (EN10088 / EN10283)
Approvals: Suitable for Gas
Warranty: 50 Years (against manufacturer defects)
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 3/4"
Outside Diameter (mm) 22.00mm
