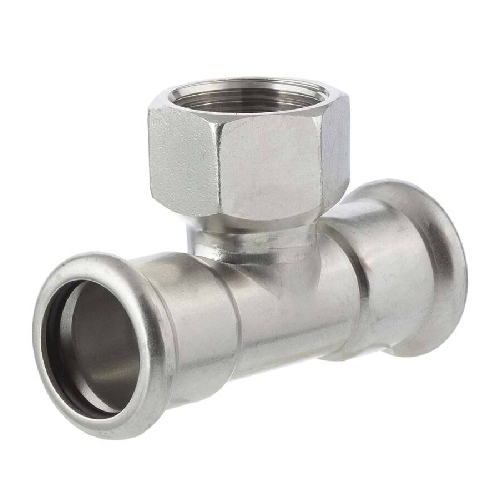

54MM X 1/2" X 54MM PRESSFIT FEMALE BSP BRANCH TEE EPDM SEALS SS 316

54MM X 1/2" X 54MM PRESSFIT FEMALE BSP BRANCH TEE EPDM SEALS SS 316

Technical Specification
Product Code
SS-PRS-FST-54-15-54-EPDM-316
Size (Inch)
1/2"
Outside Diameter (mm)
54.00mm
Weight
0.26 KG
https://www.processflow.co.uk/web/image/product.template/19450/image_1920?unique=ca03c16

£ 28.32 28.32 GBP £ 28.32 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 0.26 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Size: 54MM x 1/2" x 54MM
Seal: EPDM (Ethylene Propylene Diene Monomer)
Thread: BSP Female (Branch)
Profile: M Profile
Pressure Rating: 16 bar
Temperature Range: -30°C to 120°C
Material: 316L Stainless Steel (EN10088 / EN10283)
Approvals: WRAS Approved
Warranty: 50 Years (against manufacturer defects)
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1/2"
Outside Diameter (mm) 54.00mm
