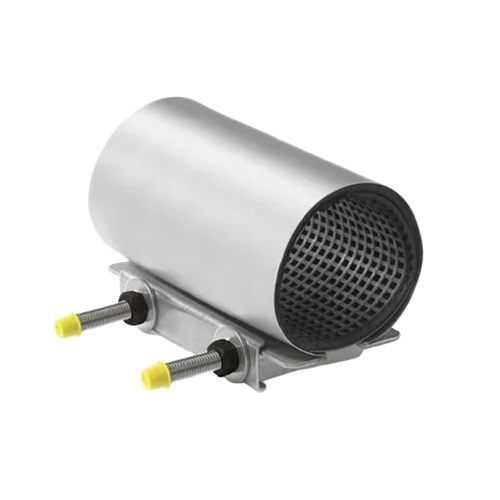

210-223mm OD STAINLESS STEEL REPAIR CLAMP EPDM LINED

Pressure Rating: PN16

Length: 300mm

Bolts: 4

Clamp Shell: Stainless Steel AISI 304 18.8

Clamp Jaws: EN-GJS-400-15 acc. to UNI EN 1563 norms

Waffle Seal: EPDM APE 55N Shore 53 + or -5

Bolts: High Tensile Steel, Galvanised M14 (multi bolt)

Approvals: WRAS

Stainless Steel Construction: Ensures durability and resistance to corrosion, making it suitable for harsh environments.

Ductile Clamping Jaws: Provides a secure and reliable grip on the pipe.

Wrap-Around Design: Facilitates easy installation without the need to sever the pipeline.

Excellent Tolerance Range: Accommodates various pipe sizes, offering versatility in application.

Light and Easy to Handle: Simplifies the installation process, reducing labour time.

Cost-Effective: Offers a reliable repair solution at a competitive price.

Waffle Type Seal: Ensures a tight seal, preventing leaks.

Captive Bolts: Bolts are designed with nuts that do not need to be removed, making the clamp easy to use.

Reduced Excavation: The design minimises the size of the excavation required, lowering overall repair costs.
