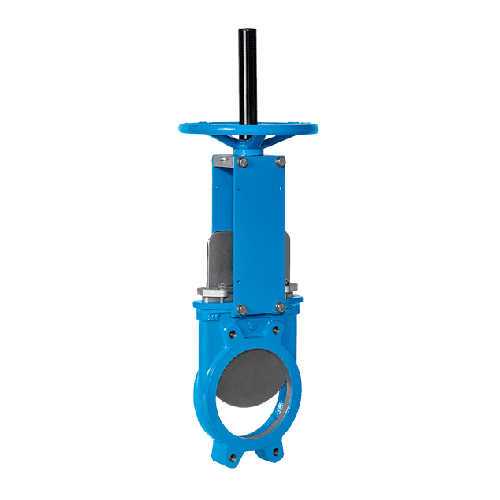

DN100 (4" NB) PN16 C/I UNI-DIRECTIONAL KNIFE EDGE GATE VALVE

DN100 (4" NB) PN16 C/I UNI-DIRECTIONAL KNIFE EDGE GATE VALVE

Technical Specification
Product Code
VAL-KEG-100-P16-HW-UNI
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
15.5 KG
https://www.processflow.co.uk/web/image/product.template/12058/image_1920?unique=ca03c16

£ 333.84 333.84 GBP £ 333.84 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 15.50 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Suits an outside diameter (OD) of: 114.3mm
Body Material: Cast Iron
Gate Material: SS 304
Seat: EPDM

To suit flanges: PN16
Pressure Class: 10 Bar
Face to Face: 50mm
Operation: Handwheel Operated
Design Standard: PN10

Product Code: VAL-KEG-100-P16-HW-UNI


Contact Us
Documents

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 4"
Outside Diameter (mm) 114.30mm
