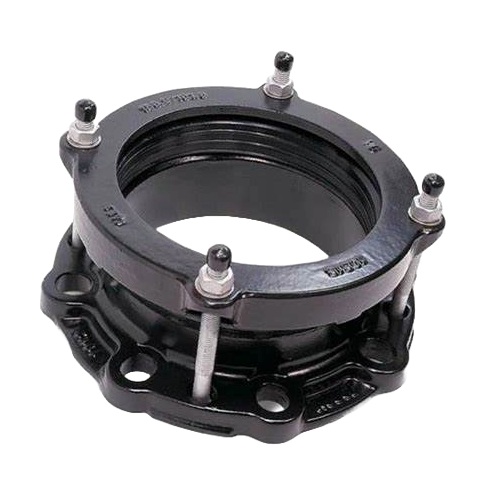

DN200 (8" NB) PN10/16 (189-212mm) VIKING JOHNSON FLANGE ADAPTOR

DN200 (8" NB) PN10/16 (189-212mm) VIKING JOHNSON FLANGE ADAPTOR

Technical Specification
Product Code
VJ-MAXIDAPTOR-175
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
8.3 KG
https://www.processflow.co.uk/web/image/product.template/11337/image_1920?unique=dae48f3

£ 253.05 253.05 GBP £ 253.05 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 8.30 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Closing Range on Pipe Diamter: 189mm to 212mm
Working Pressure: 16 Bar
Test Pressure: 24 Bar
Adaptor Body & End Ring: Ductile Iron BS EN1563: 2011
Bolt Holes: 12 off
Mutli PCD:

8 Elongated Holes for 8" Table D & PN10
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

12 Elongated Holes for 8" PN16
- 19mm Ø on 292mm PCD
- 23mm Ø on 299mm PCD

Tee Bolts: M12 x 125mm

Note: MaxiFit Flange Adaptors DO NOT Resist End Load.

Other compatable flange drillings: ANSI/ASA125 & ANSI/ASA150.

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 8"
Outside Diameter (mm) 219.10mm
