316

Website List 200 (PFC)
Sort By: Featured

316

DN600 (24" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 939.8mm (O)
Flange thickness: 101.6mm (C)
Flange hub height: 139.7mm (Y)
Pitch Circle Diameter (PCD): 838.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 50.8mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN500 (20" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 812.8mm (O)
Flange thickness: 88.9mm (C)
Flange hub height: 127.0mm (Y)
Pitch Circle Diameter (PCD): 723.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 44.4mm diameter
Bore Diameter: 513.0mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices

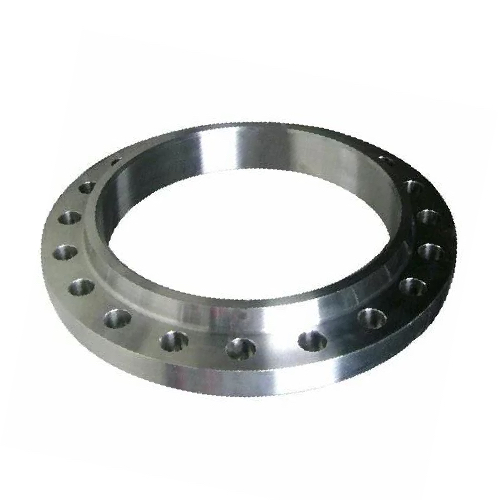

DN450 (18" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 742.9mm (O)
Flange thickness: 82.5mm (C)
Flange hub height: 117.3mm (Y)
Pitch Circle Diameter (PCD): 654.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 44.4mm diameter
Bore Diameter: 461.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN400 (16" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 685.8mm (O)
Flange thickness: 76.2mm (C)
Flange hub height: 106.4mm (Y)
Pitch Circle Diameter (PCD): 603.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 20 off 41.1mm diameter
Bore Diameter: 410.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN350 (14" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 603.2mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 527.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 20 off 38.1mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN300 (12" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 558.8mm (O)
Flange thickness: 66.5mm (C)
Flange hub height: 91.9mm (Y)
Pitch Circle Diameter (PCD): 488.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 327.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices

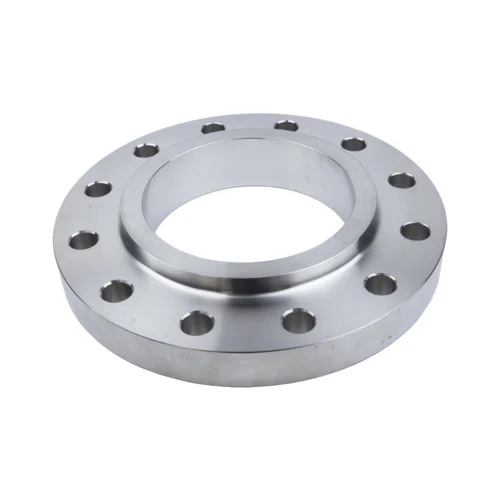

DN250 (10" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 508.0mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 85.8mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN200 (8" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 419.1mm (O)
Flange thickness: 55.6mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 349.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 31.7mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN150 (6" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 355.6mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 292.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN125 (5" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 330.2mm (O)
Flange thickness: 44.4mm (C)
Flange hub height: 60.4mm (Y)
Pitch Circle Diameter (PCD): 266.7mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 28.4mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices

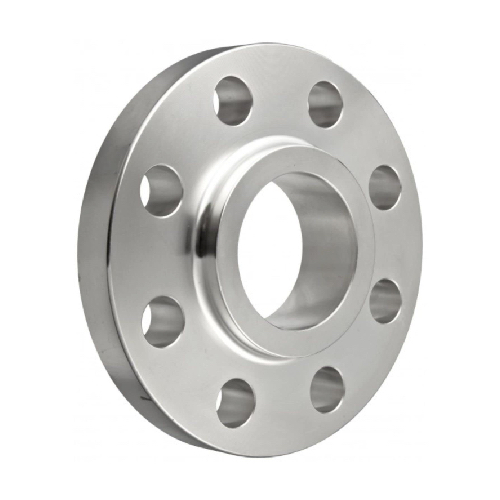

DN100 (4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 273.0mm (O)
Flange thickness: 38.1mm (C)
Flange hub height: 53.8mm (Y)
Pitch Circle Diameter (PCD): 215.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 25.4mm diameter
Bore Diameter: 116.0mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN80 (3" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 209.5mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 45.9mm (Y)
Pitch Circle Diameter (PCD): 168.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN65 (2.1/2" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 190.5mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 149.3mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 74.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN50 (2" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 165.1mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 36.5mm (Y)
Pitch Circle Diameter (PCD): 127.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 19.0mm diameter
Bore Diameter: 61.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN40 (1.1/2" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 155.4mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 114.3mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN32 (1.1/4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 133.3mm (O)
Flange thickness: 20.5mm (C)
Flange hub height: 28.4mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN25 (1" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices

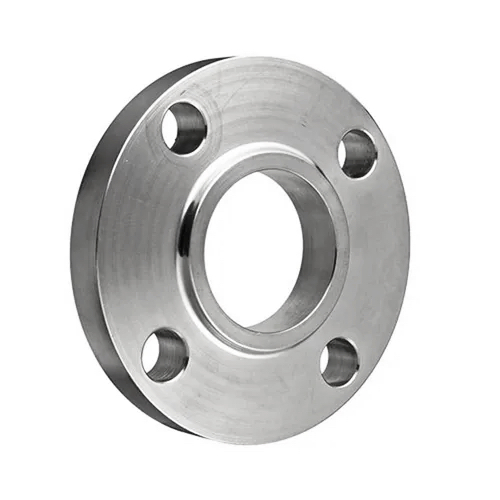

DN20 (3/4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN15 (1/2" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316

Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
