304

Website List 200 (PFC)
Sort By: Featured

304

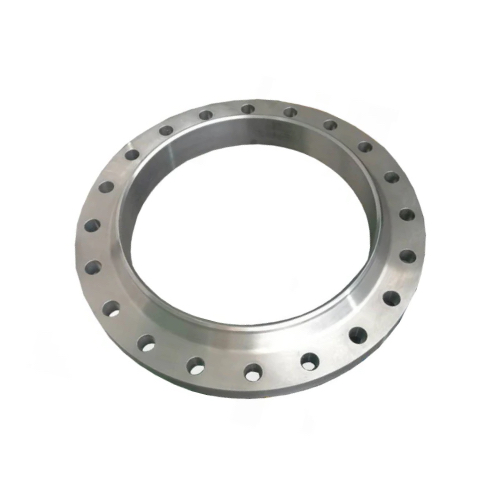

DN300 (12" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Hub height (X): 374.6mm
Length through hub (A): 323.8mm
Bolt circle diameter (K): 406.4mm
Overall height (Y): 130.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 381.0mm
Number of bolt holes: 16
Bolt hole diameter: 31.7mm
Approx. weight: 64.0kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN250 (10" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices

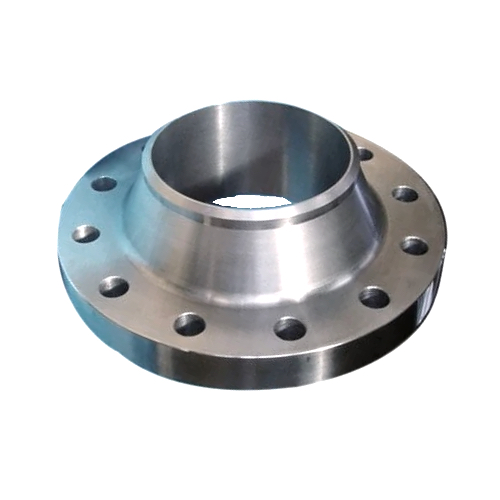

DN200 (8" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 304.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN150 (6" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN125 (5" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Hub height (X): 177.8mm
Length through hub (A): 141.2mm
Bolt circle diameter (K): 234.9mm
Overall height (Y): 98.5mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 15.2kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN100 (4" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Hub height (X): 146.0mm
Length through hub (A): 114.3mm
Bolt circle diameter (K): 203.2mm
Overall height (Y): 85.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 11.9kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN80 (3" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Hub height (X): 117.3mm
Length through hub (A): 88.9mm
Bolt circle diameter (K): 168.1mm
Overall height (Y): 79.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 7.4kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices

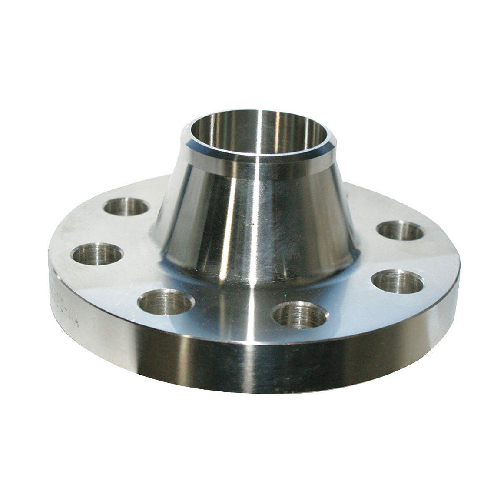

DN65 (2"1/2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN50 (2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN40 (1"1/2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN32 (1"1/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN25 (1 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN20 (3/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
DN15 (1/2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
See more
Not Available For Sale 0.0 GBP
Available to order Sign up for trade prices
